Autronic knockboard
for Mitsubishi and Subaru (Both PnP & SM4)

Our affordable combustion knock control add-on for SM4 wire-in and SM4 based plug-in ECUs features modern DSP (Digital Signal Processor) technology that offers amazing performance from surprisingly simple hardware. Its high performance DSP technology adds versatility to all aspects of the combustion knock detection process.

This product is a true cylinder by cylinder knock control system. Its capability extends to multi- band, simultaneous multi-cylinder analysis with agile rpm and crank angle dependant adaption of both signal capture window and selective filter frequency for up to 8 cylinder applications using a single sensor.

Complex diagnostic functions support failsafe and limp-home strategies for various abnormal conditions including poor signal quality, sensor or sensor wiring failure.
Built in cylinder by cylinder adaptability allows this product to be programmed with calibrations that suit whole engine families not just a particular engine. Interchangeability is similar to OEM ECU knock systems.

Use this module to develop optimal ignition timing maps. Allow it to perform closed loop ignition timing for full load knock limited engine operation that produces maximum engine output under all operating conditions.

Initial release of this product is preprogrammed modules to suit specific engine types. Since they require no user calibration, these units do away with the laborious selection of signal filter selection, detection window angles and sensitivity calibration maps. Routine engine changes can be made without making any adjustment to the Knock Processor Module or ECU.

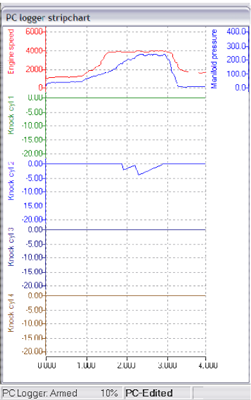

Graph showing Knock on cyl 2

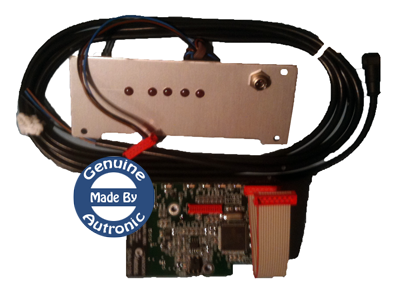

Also available with SM4 backend plate when using SM4.

Knockboard manual here
