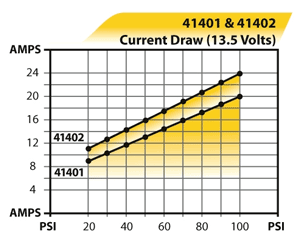

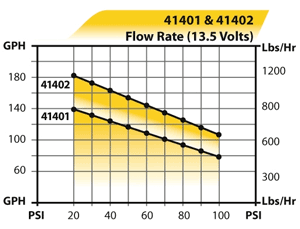

41401 Pump: 105 GPH @ 45 PSI - RATED UP TO 1000HP
The original digital Prodigy fuel pump, great for street, strip, or off-road use.

41402 Pump: 140 GPH @ 45 PSI - RATED UP TO 1300HP
Increase performance capabilities with extra flow for higher powered engines.

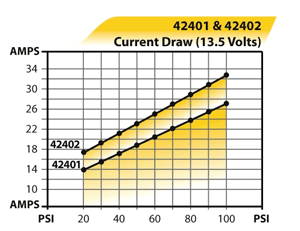

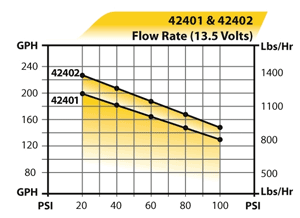

42401 Pump: 170 GPH @ 45 PSI - RATED UP TO 1500HP
Throw in as much boost as you want, this model will support up to 1500 horsepower at high pressures.

42402 Pump: 190 GPH @ 45 PSI - RATED UP TO 1800HP
The top of the line... supports very high horsepower!

All four pumps can be controlled from SM4 or other with simple pwm output, why pump fule for full power at low loads?

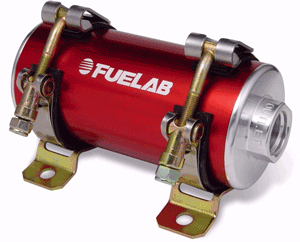

Prodigy Fuel Pump High Pressure EFI In Line

FUELAB® has taken Fuel Delivery to the next level... Digital. Prodigy Fuel Pumps are the automotive aftermarket’s first and only speed controllable DC brushless driven fuel pump. Fuelab’s award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw. With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps.

Pump Features:

• Compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump

• Special housing shape for extremely quite operation and steady pressure

• Carbon 9-vane construction with pressure balanced rotor for high reliability

• Backed by a 2-year limited warranty

Motor Features:

• Lightweight super-efficient dc brushless motor reduces current draw

• Low mass rotor for high speed reaction to changes in speed and flow

• Powerful high flux density Neodymium rare earth magnets

• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)

• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features:

• Internal speed controller for variable flow operation

• 12 to 16 volt vehicle electrical system compatibility

• Accepts PWM input for speed control

• No expensive add-on voltage reregulators or pump controllers required!

• Continuous duty–motor speed can be adjusted for street or strip fuel demand



Construction Features:

• Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"

• Billet Aluminum Construction with anodize per MIL-A-8625, Type II

• High quality mounting brackets included

• Long-life, multi-fuel compatible Fluorosilicone static seals

• Accepts standard or port style –10AN fittings
