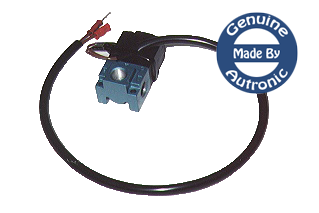

	Boost valve Autronic Boost valve, 1/8 npt. This valve is used for most applications, if using very big waste-gate or two waste-gates you can use two of this small boost valve. This gives a more stable boost than the bigger type. This valve is Genuine Autronic, this type of valve can be assembled in 10-20 different combinations, and we sell only the true Autronic valve designed by richard Aubert (Autronic)

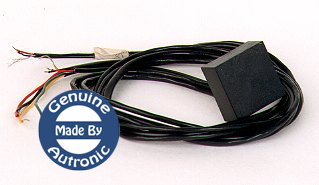

	Reluctor interface For use with the SMC or SM2 where magnetic crank or distributor sensors are used. Also for magnetic wheel sensors when using traction control on Sm2 or Sm4. The reluctor interface has two channels and can be used only one ore booth. There are no settings or other things to adjust so it is used for many other applications and other ecus when magnetic sensors are used.
	Hallsensor Gear tooth hallsensor used for crank, cam or wheel speed, Honeywell made.
No1 spark plug pick-up Spark plug pick-up, is used to get a sync signal for SMC/SM2/SM4 whne using distributor, can not be used with cdi ignition or multispark.
Tacho adapter Autronic tacho adapters and generate a 12 volt tach output.
Autronic Air temp sensor Air temp sensor fast and accurate, some other brands may look similair but are not the same type. So to be sure use genuine Autronic sensor
Autronic water temp sensor Water temp sensor NTC type
Autronic communication cable Is used to communicate between SMC,SM2, SM4 and PnP to computer. If you need a USB interface use ATEN below.
ATEN USB Interface Inteface that works when only USB are avilable on PC.
SM4 connector kit With pins
SMC connector kit With pins
SM2 connector With pins
CDI connecor kit With pins
SM4 harness
SMC harness
SM2 harness
Bosch relay for harness
LSM011 Sensor For Analyzer
NTG UEGO sensor For Analyzer
Nissan trigger disc
